How I Run Revit on a MacBook

This isn’t a review or how‑to - it’s just my personal experience.

I’ve been on a Mac for ages - it’s compact, light, and runs on its own. However, as an architect/BIM Manager, I’m tied to Revit, and it only runs on Windows. I wanted to blend the two worlds: keep the Mac’s portability while getting full access to Revit.

This piece isn’t theory; it’s a practical breakdown of how I arrived at a working hybrid setup. I’ll share what I needed, what headaches I hit along the way, and why the result turned out even better than I expected.

Why bother running Revit on a Mac at all?

Because my Mac is my main work machine and Revit is my main professional tool. It was important for me to find a way to use them together without compromise.

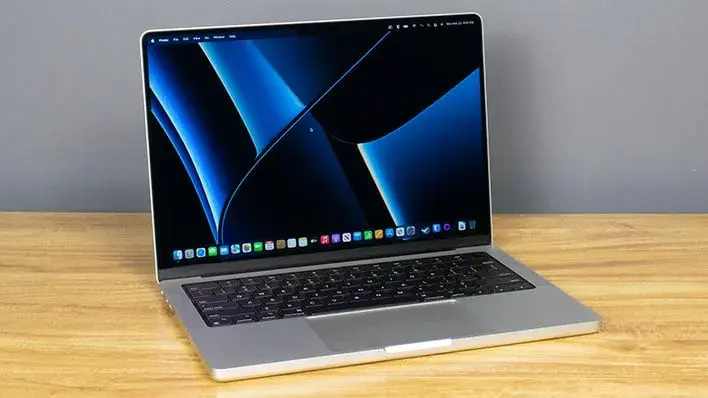

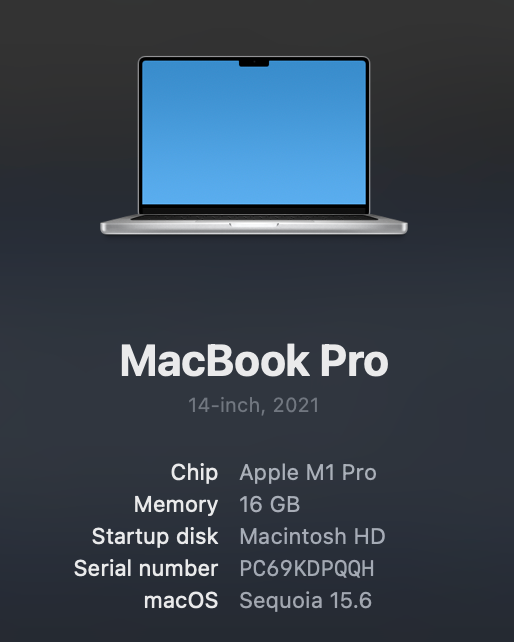

Here’s the laptop I already had at the time:

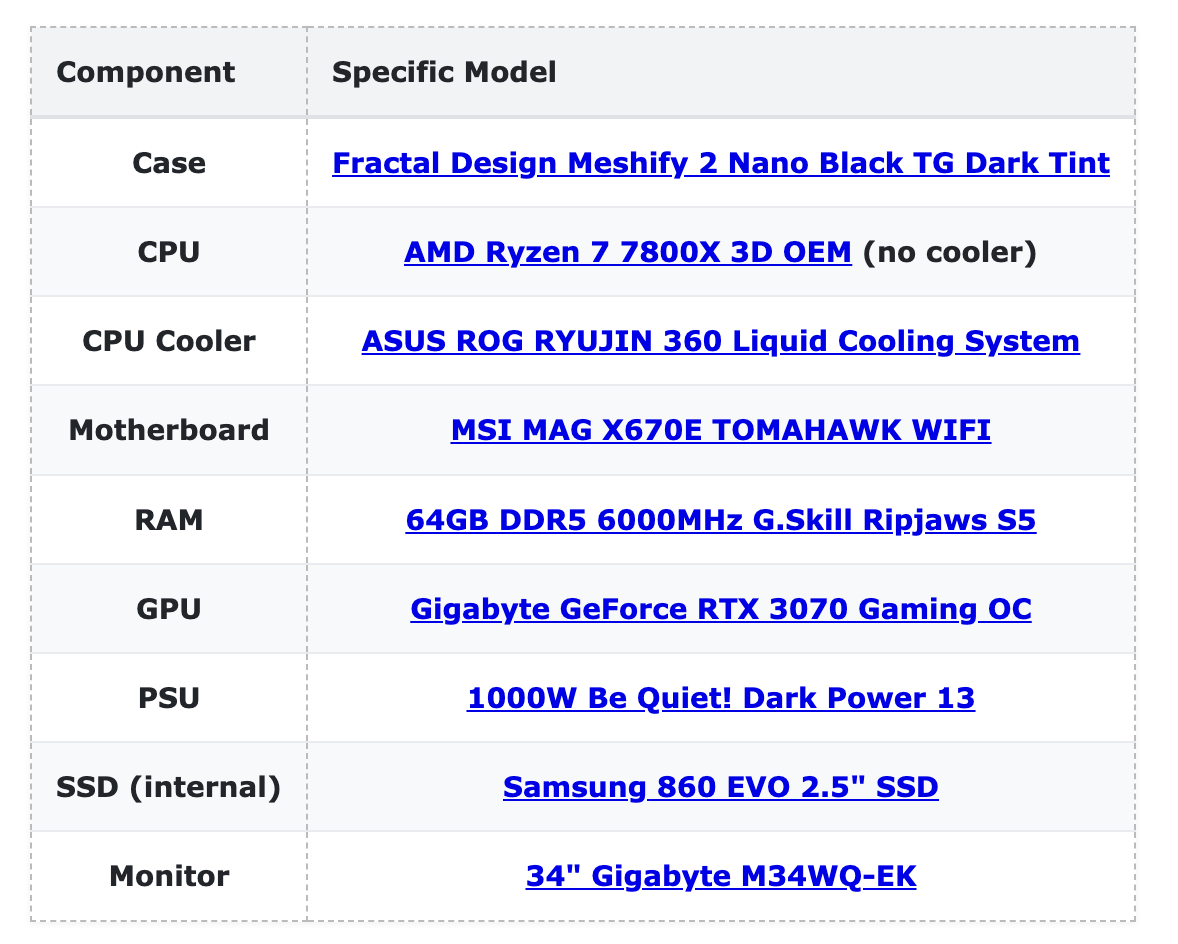

And here is my home PC’s configuration. These specs will make it easier to compare performance later on.

Component	Specific Model
Case	Fractal Design Meshify 2 Nano Black TG Dark Tint
CPU	AMD Ryzen 7 7800X 3D OEM (no cooler)
CPU Cooler	ASUS ROG RYUJIN 360 Liquid Cooling System
Motherboard	MSI MAG X670E TOMAHAWK WIFI
RAM	64GB DDR5 6000MHz G.Skill Ripjaws S5
GPU	Gigabyte GeForce RTX 3070 Gaming OC
PSU	1000W Be Quiet! Dark Power 13
SSD (internal)	Samsung 860 EVO 2.5" SSD
Monitor	34" Gigabyte M34WQ-EK

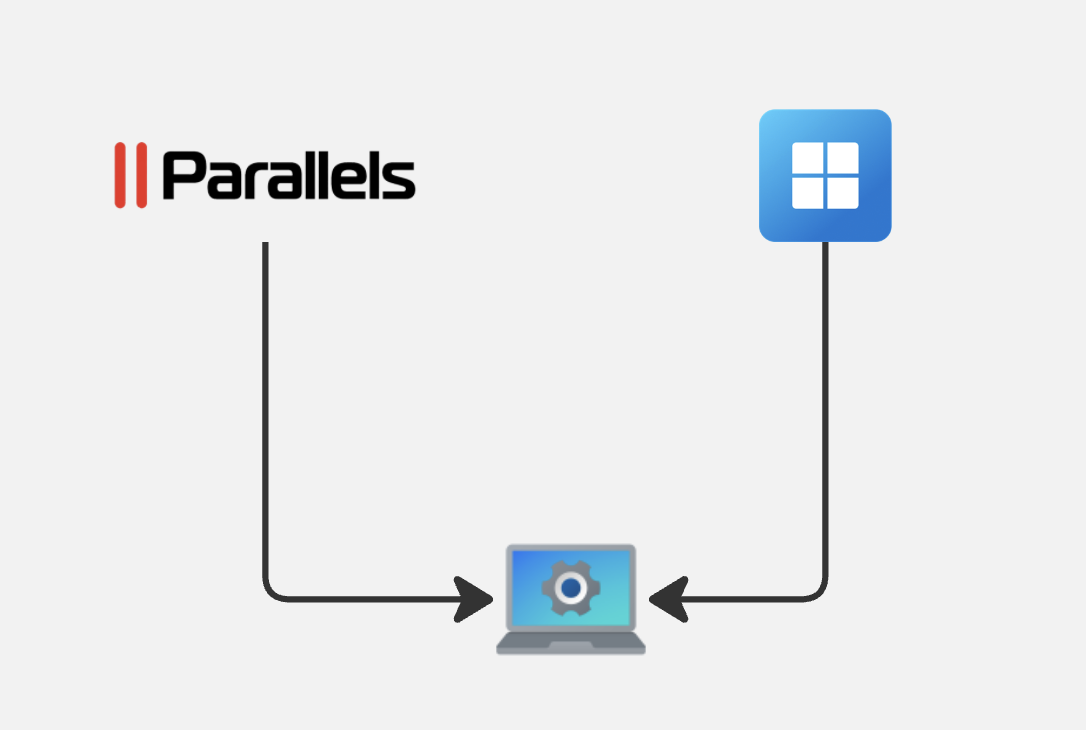

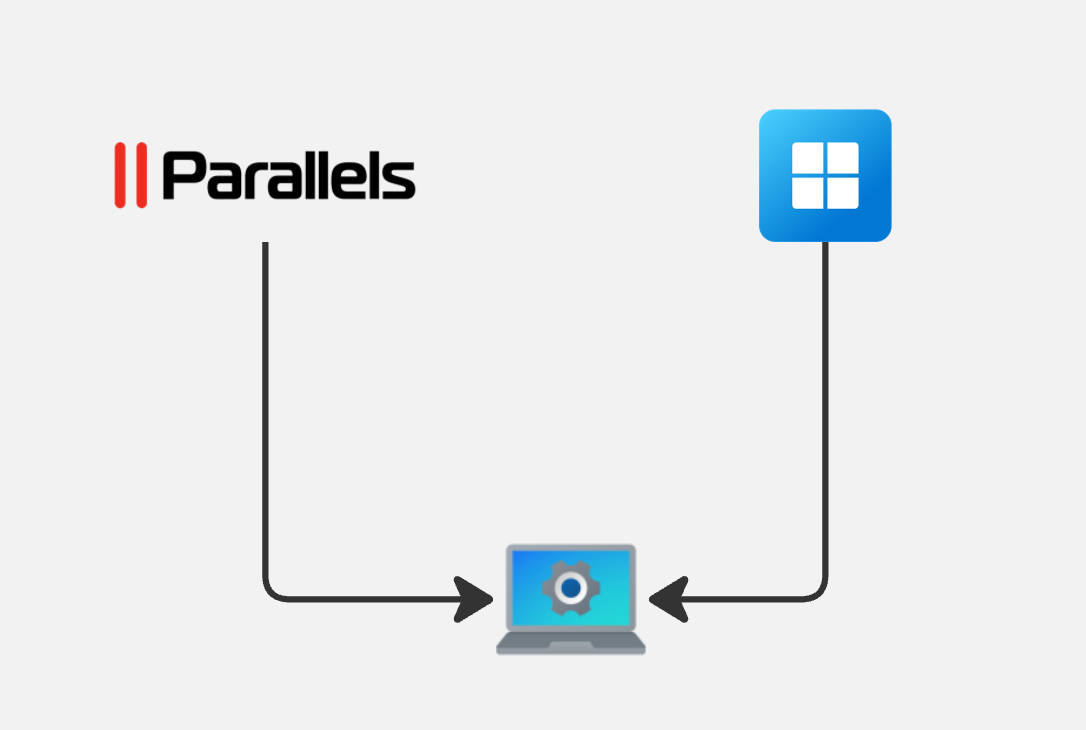

Now to the main point: how can you even run Autodesk Revit on a Mac? There are three options:

• Parallels Desktop - running Windows inside macOS through a virtual machine
• Remote access (RDP) - connecting to a remote Windows PC over the internet
• Hybrid approach - combining the two methods depending on the task and conditions



1. Parallels Desktop: Revit always at hand

Parallels lets you run Windows as a virtual machine right inside macOS. That means all your software and projects live on your laptop, and you don’t depend on the internet. Perfect for working on the go.

But mobility has a price:

• First, your Mac needs to be powerful enough - especially when it comes to CPU and RAM.

• Second, the battery drains twice as fast. That’s inevitable - any CAD app pushes the system hard, and virtualization doubles the load.

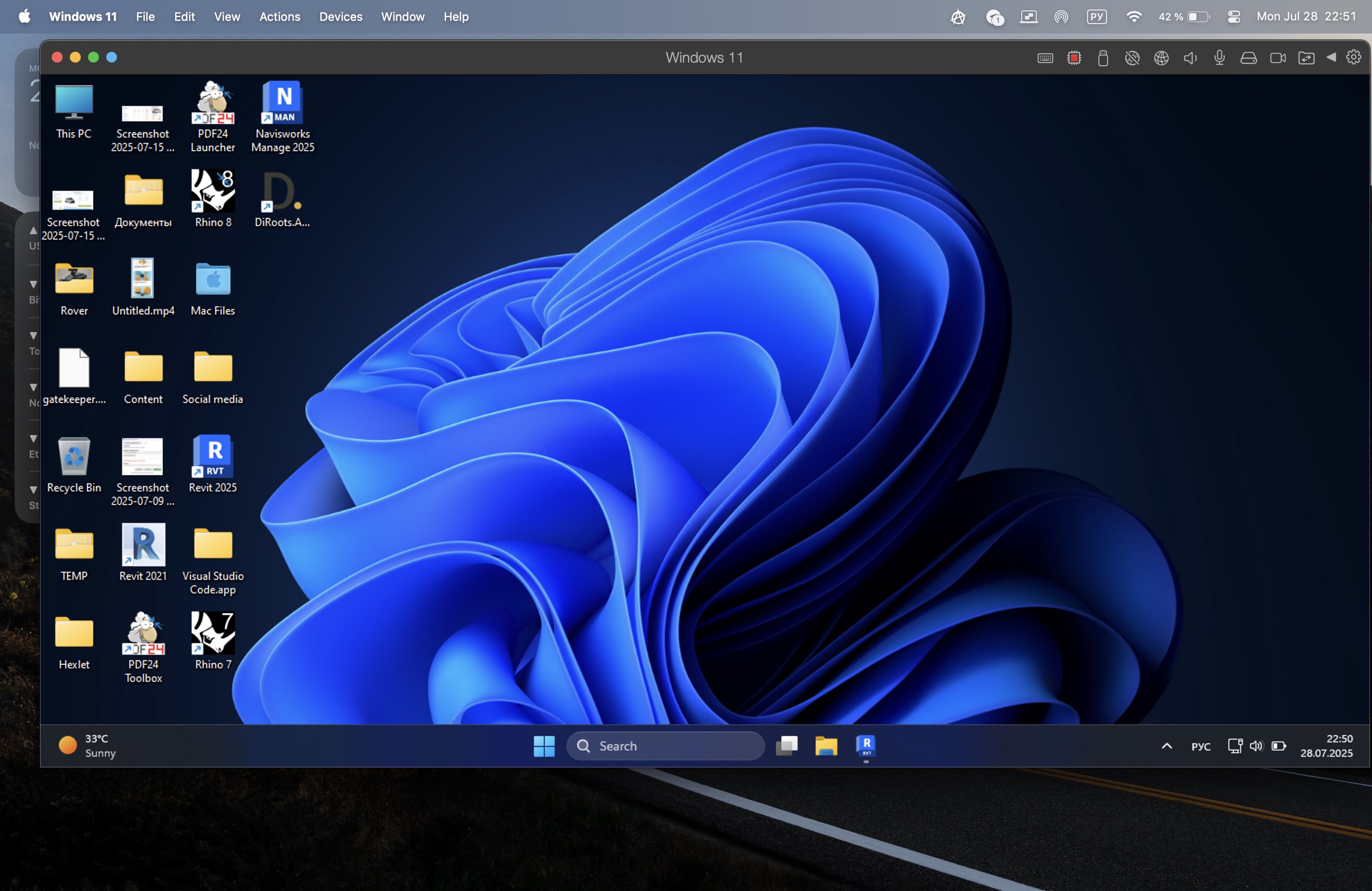

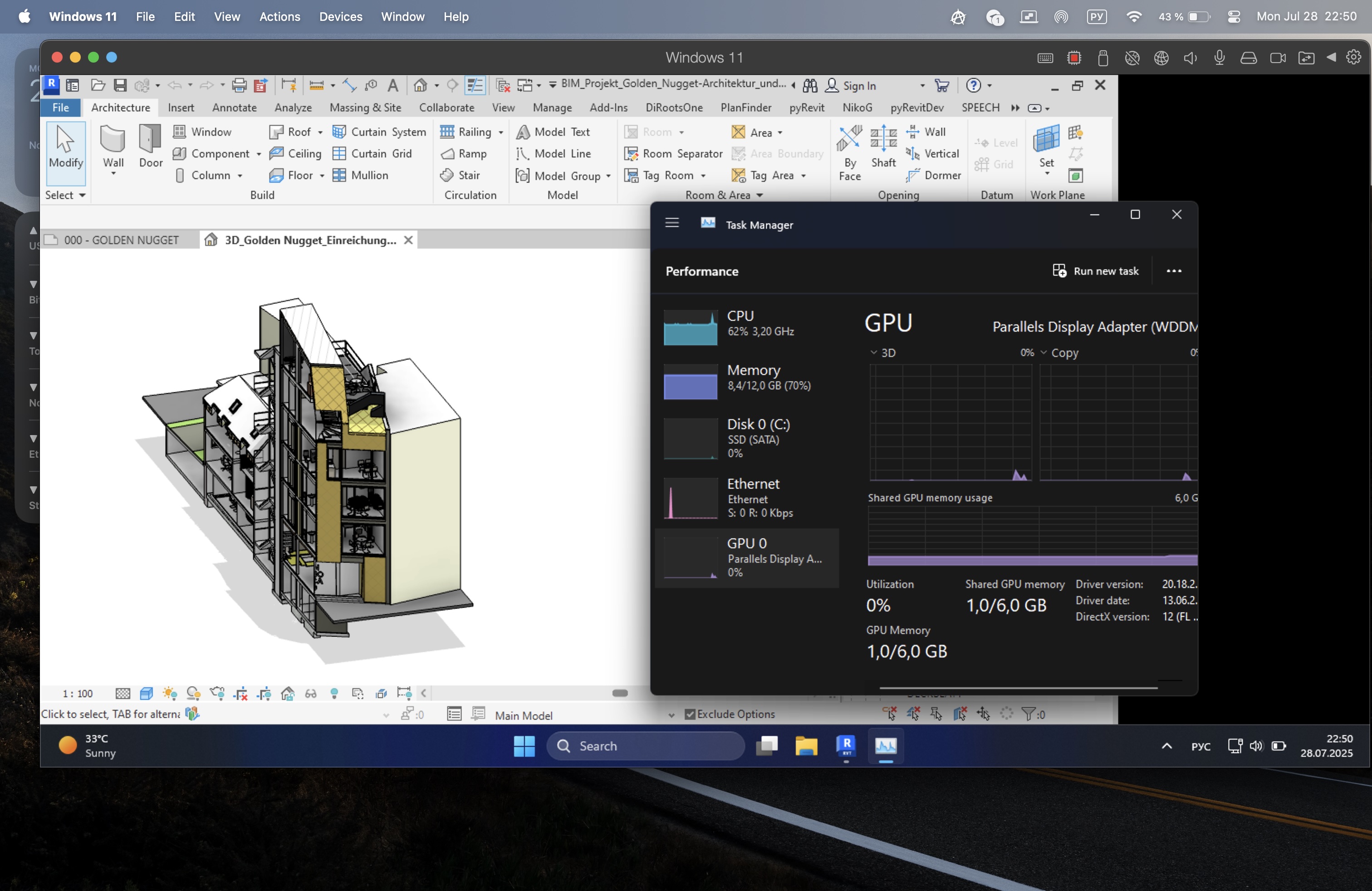

Screenshot of Revit running in Parallels Desktop on Mac

Pros:

• Autonomy - up to 4–5 hours of actual battery life (varies by model)

• Flexibility - instant switching between macOS and Windows

• Offline - everything runs without the internet, no servers needed

Cons:

• System load - you need at least 32 GB of RAM (I only have 16 GB) and a beefy chip (M1 Pro or better)

• Reduced battery life - the battery drains about twice as fast

Battery life in reality

On a 14″ MacBook Pro with an M1 Pro and 16 GB of RAM, Revit runs surprisingly smoothly: it launches quickly, the UI is responsive, and models rotate fluidly - as long as you give the VM maximum resources.

Of course, this isn’t a replacement for a full workstation. But if you need to work on the go, away from outlets and the internet, it’s workable.

To measure battery life, I used the standard Revit model BIM_Projekt_Golden_Nugget from the sample files. Here are the results below.
(In the screenshot, Revit is running in a window on purpose, so it’s clear it’s running on the MacBook.)

Consumption and battery life

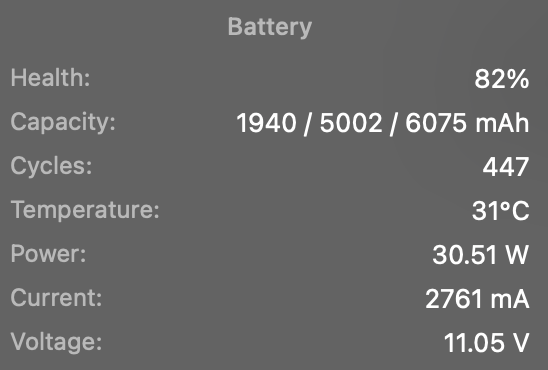

Here are the battery stats. It’s not in perfect shape - the laptop is nearly four years old, the capacity is at 82%, which is roughly 55 watt‑hours of usable battery. Even so, the results were pretty illustrative:

Power draw fluctuated between 20 and 35 Wh, depending on the workload. I’m highlighting these numbers because right now we’re talking about battery life.

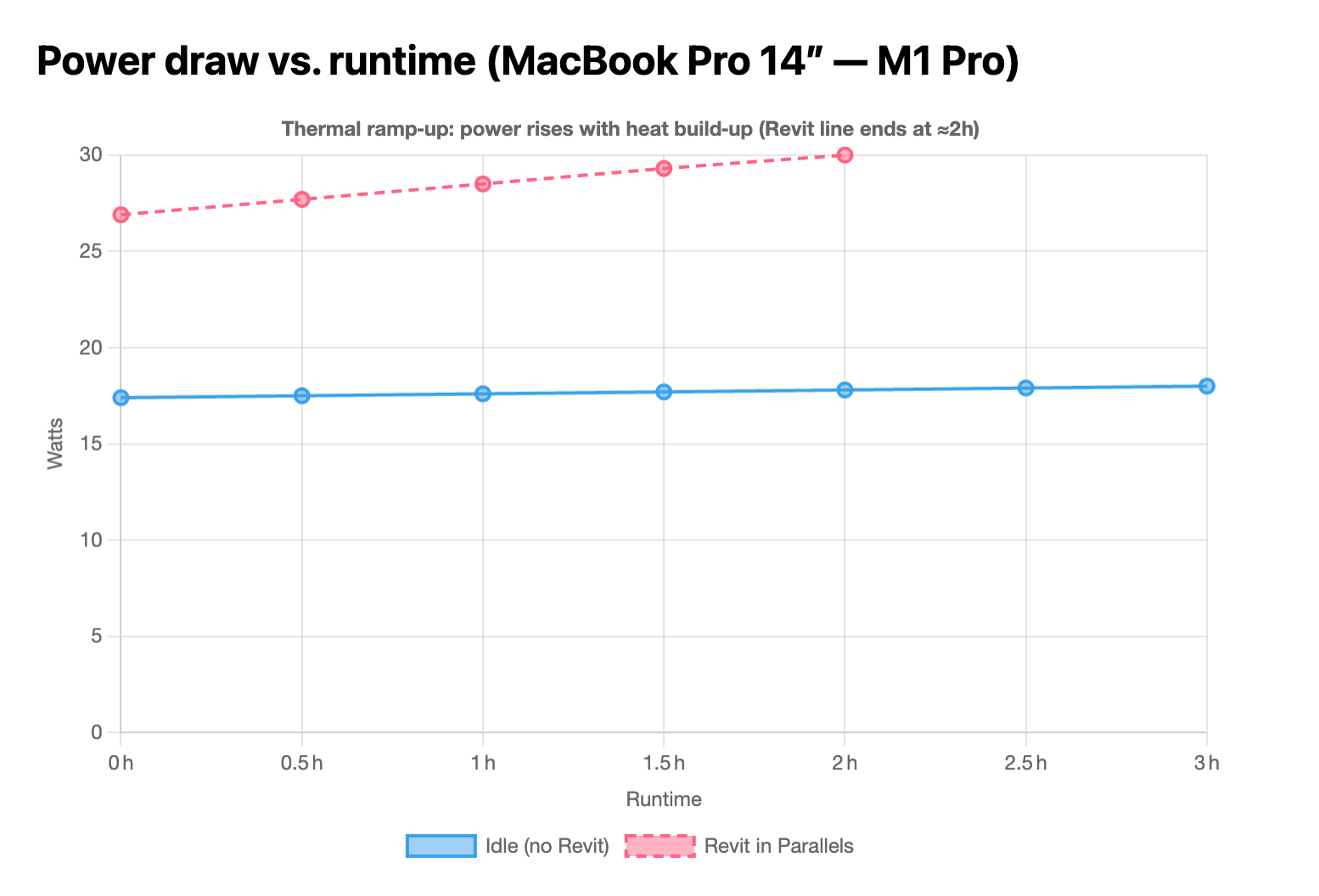

As you can see from the graph, the discharge isn’t linear. That’s easy to explain: the longer you spend on a resource‑heavy task, the hotter the machine gets, and the more power it pulls.

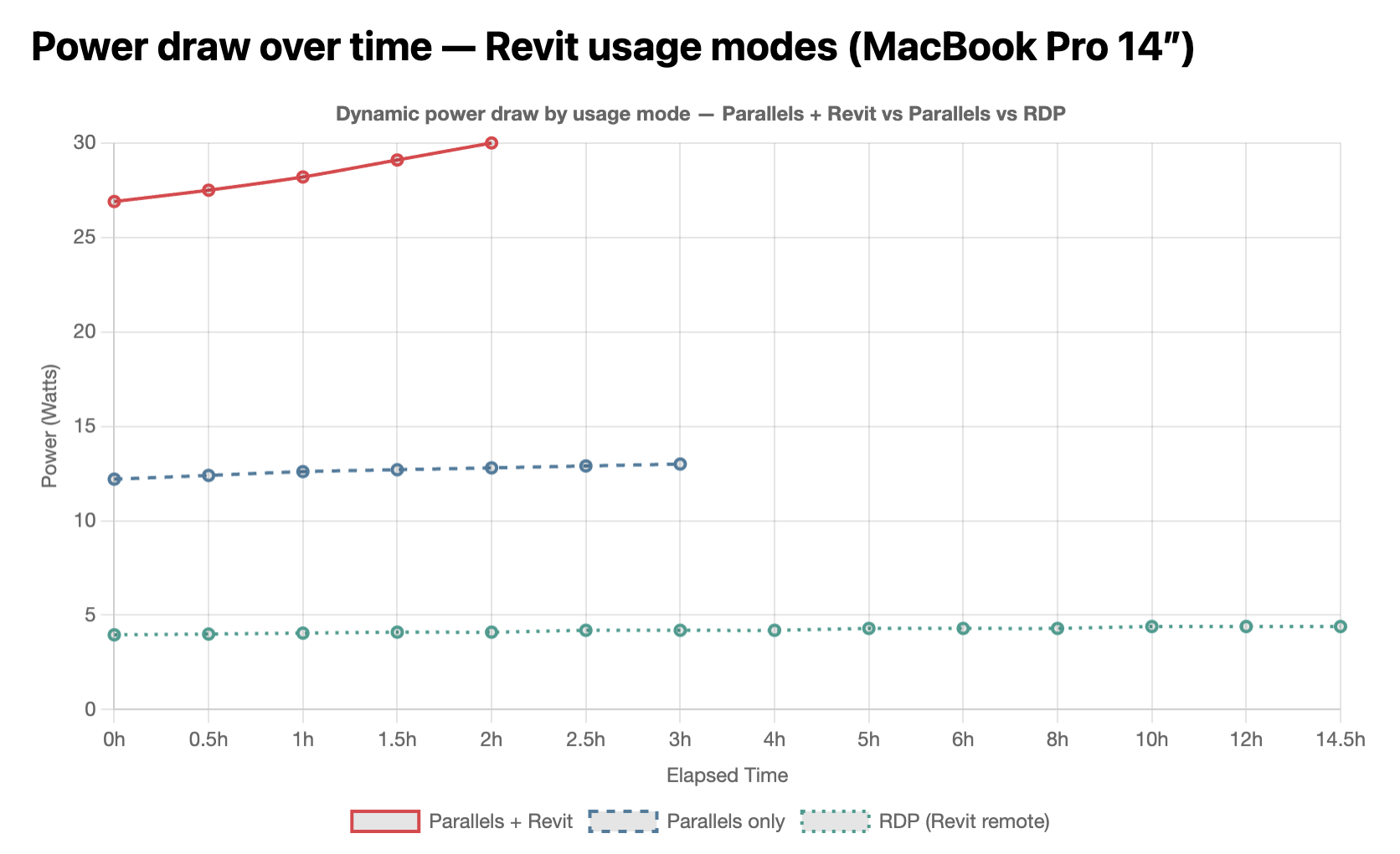

Battery consumption with Revit and without — just Parallels

The ambient temperature may also play a role. An interesting observation: screen brightness hardly affects the final number, at most +2–4 Wh added to the average draw.

Real‑world performance

Now to the big question - how well does Revit run in this setup? As expected, performance is noticeably lower than on a desktop PC. But it’s not crippling. To gauge the difference, I used RFO Benchmark v3 for Revit 2025.4. Below are the screenshots and measurements that help compare things objectively.

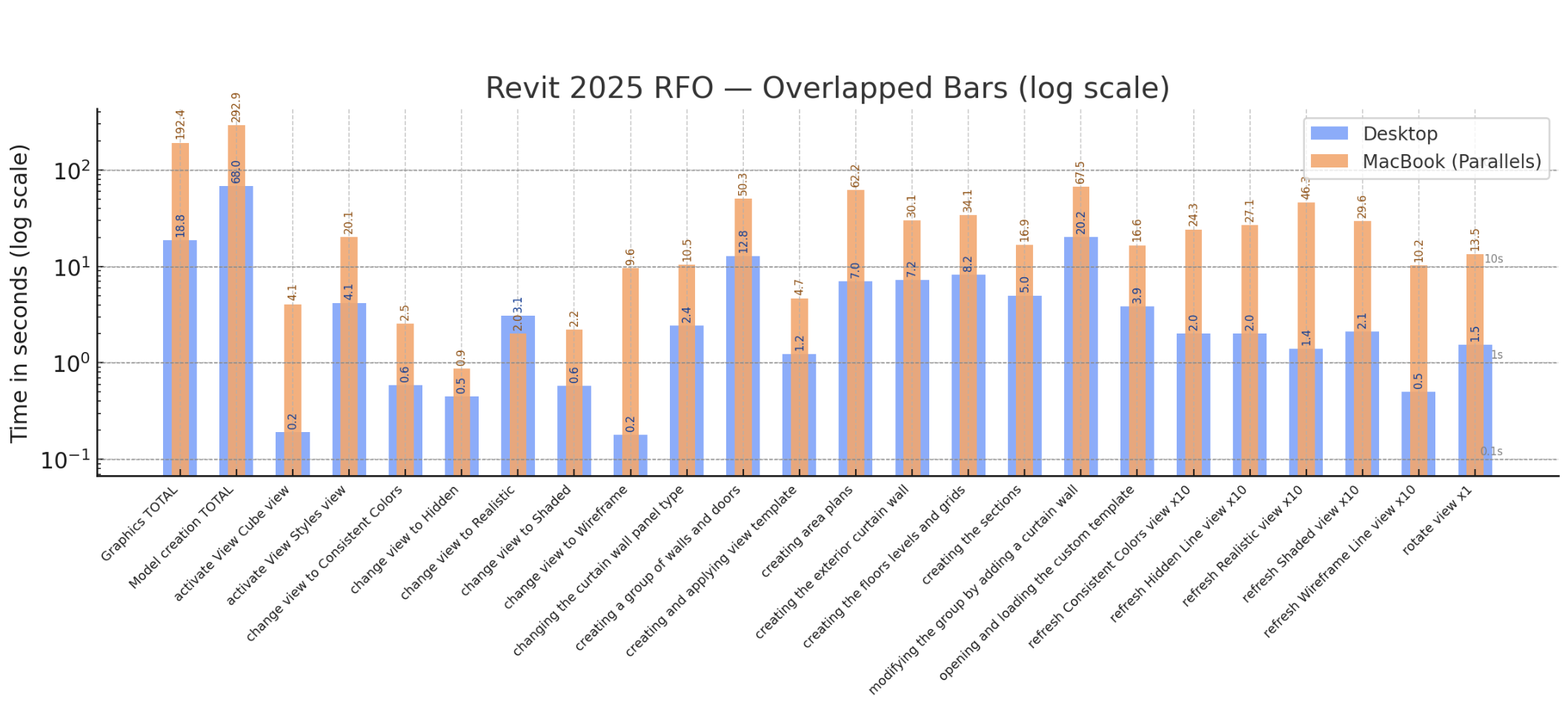

Test results

As the charts show, my MacBook comes up short against the desktop almost across the board:

• On average, the Parallels + Revit combo runs 5–6 times slower

• Under CPU‑heavy loads, the gap is smaller, but still 3–4 times slower

• The one surprise was switching to Realistic mode: here, the Mac clocks 2.0 s versus 3.1 s on the desktop. In this narrow scenario, the M1 chip with Metal draws faster than the old RTX - a rare but interesting case.

A more powerful Mac would turn in different numbers, but I’m judging my specific setup, not theory.

Conclusion

This setup works as long as you have a powerful enough MacBook. Even tethered to a charger, it’s still a compact, handy travel solution.

I deliberately didn’t fixate on benchmarks and FPS — it’s clear this is a compromise.
There isn’t a ton of smoothness, and comfort is relative. But calling it “torture” wouldn’t be fair.

On a ten‑point scale, I’d give it a solid 6/10.
It’s usable, especially on the road or out in the field, but with its limitations.

2. Remote access (RDP): power without overload

The second scenario is connecting to a remote Windows PC or server via RDP. Essentially, you’re working “in the browser”: all the computing and rendering happens on the remote machine, and you just receive the image.

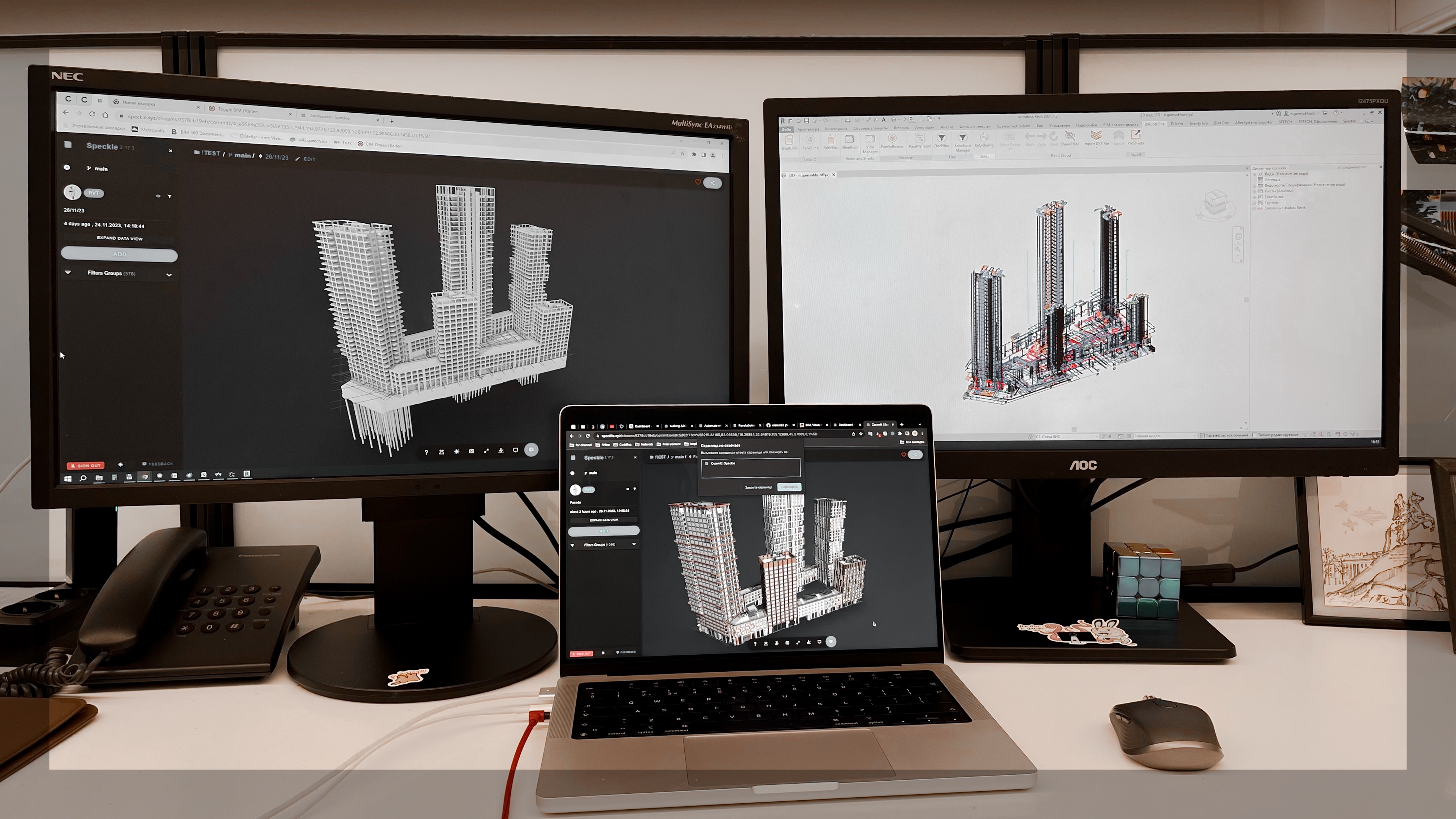

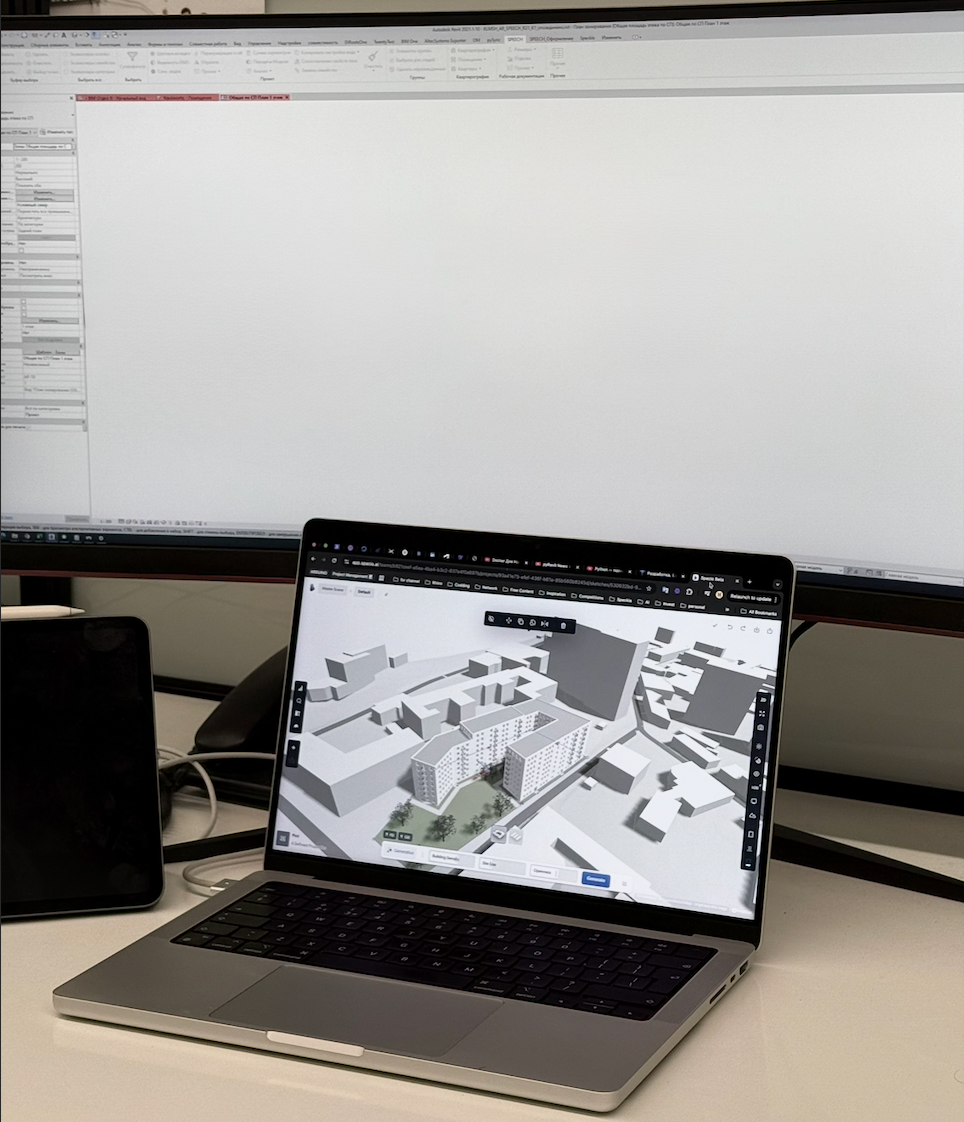

Revit over RDP from a MacBook, connecting to a powerful workstation (visually, there’s no difference)

Connecting is as simple as it gets: you open the client, log into the remote desktop, and work like on a regular computer, with whatever horsepower the remote box provides.

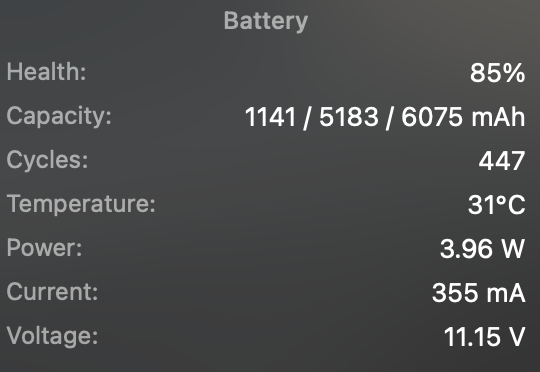

Yes, the battery status graph can jump around – that’s just how the monitoring app behaves.

Battery life and load

Power draw is minimal, comparable to plain web browsing:
It averages 4–11 W, and peaks don’t exceed 13 W.
The result is a record 10–14 hours of battery life, even with a tired battery.

Extra options: how not to keep your PC running 24/7

To work with Revit via RDP, you need stable Wi‑Fi and access to your Windows PC. But leaving a desktop machine running around the clock isn’t very practical: it might reboot itself, shut off, or just make noise and burn power.

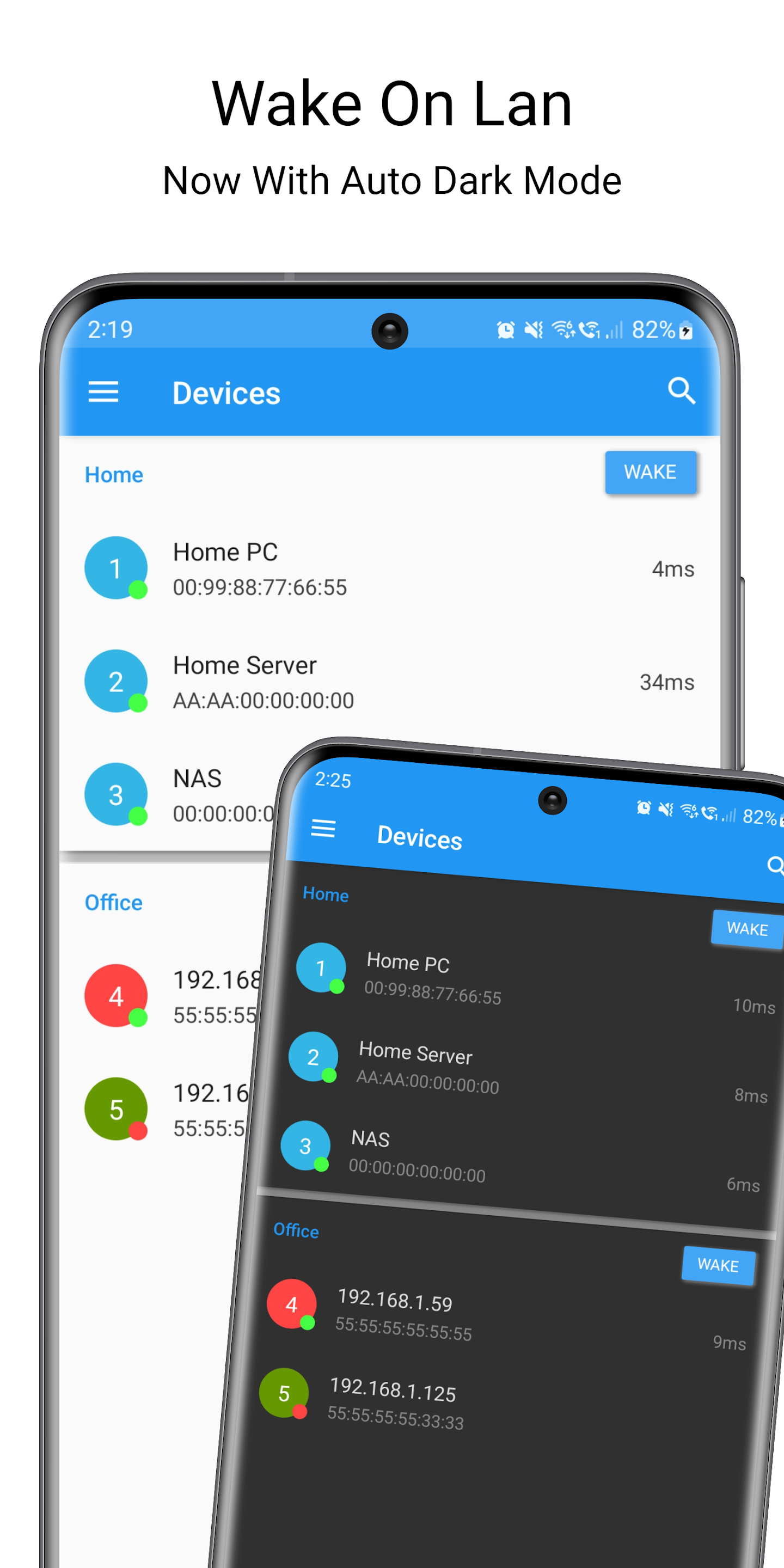

The fix is to use Wake‑on‑WAN (WoW):

• Set up a router at home or in the office with WoW support

• It lets you turn your PC on remotely over the internet, even when it’s powered off

It’s handy: the PC stays off when you don’t need it, and it’s available whenever you do. The main thing is that your router supports remote Wake‑on‑LAN (brands like Keenetic, ASUS, MikroTik offer this).

Pros

• Maximum horsepower - everything runs on the remote station

• Minimal strain on the Mac - up to 14 hours of battery life

• Works even on a weak MacBook Air

Cons

• Dependent on the internet

• Takes some setup: VPN, static IP, or DDNS

• No offline access to models

Real‑world performance

With a solid internet connection and a beefy workstation, everything flies. Navisworks chews through federated models without hanging, and Revit stays stable. But let the bandwidth dip, and lag, artifacts, and delays are a given.
Performance numbers aren’t needed here, since everything depends on your workstation — the beefier it is, the better the results.

Signal quality and how it feels in Revit over RDP

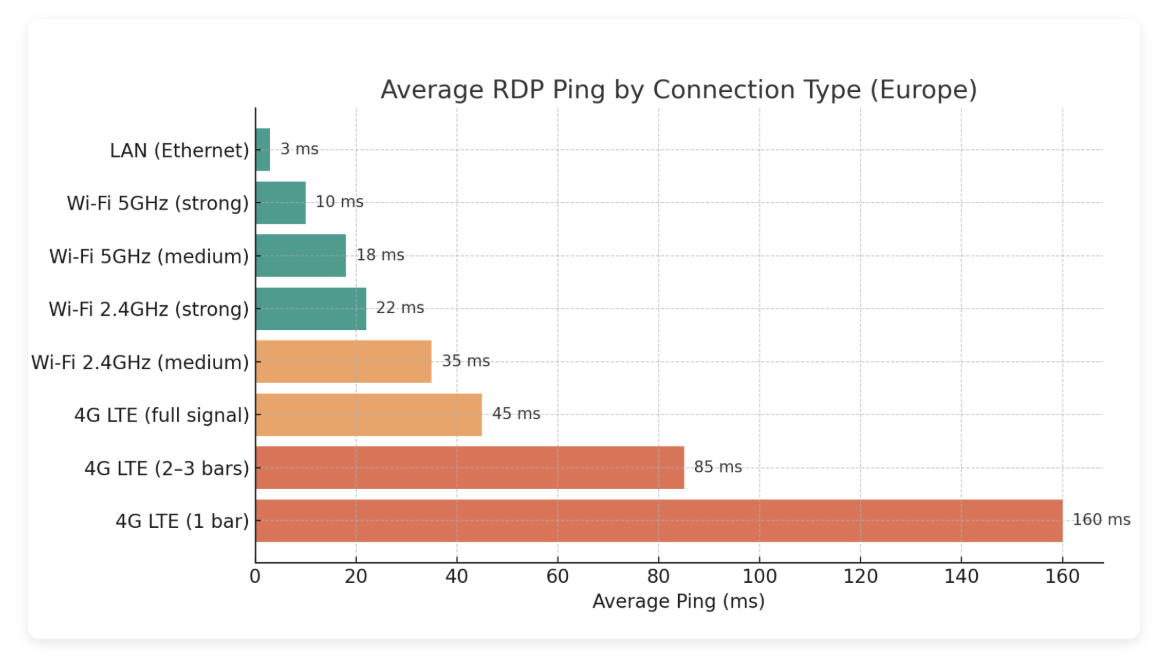

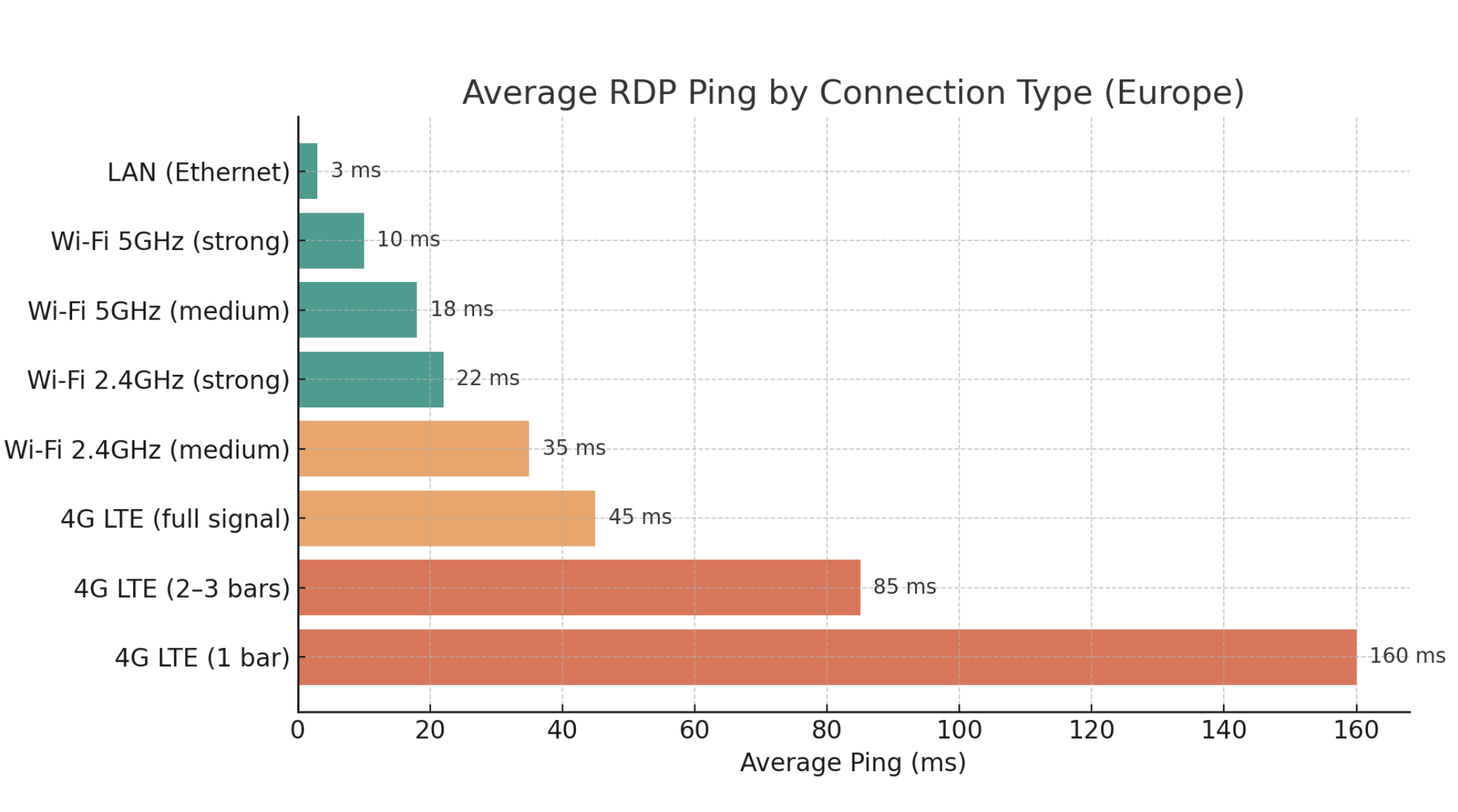

To get a sense of how comfortable remote work will feel, I gathered average ping times across Europe (source: SpeedTest Global Index) and mapped them to real‑world impressions – anyone who’s played an MMORPG will recognize the scale:

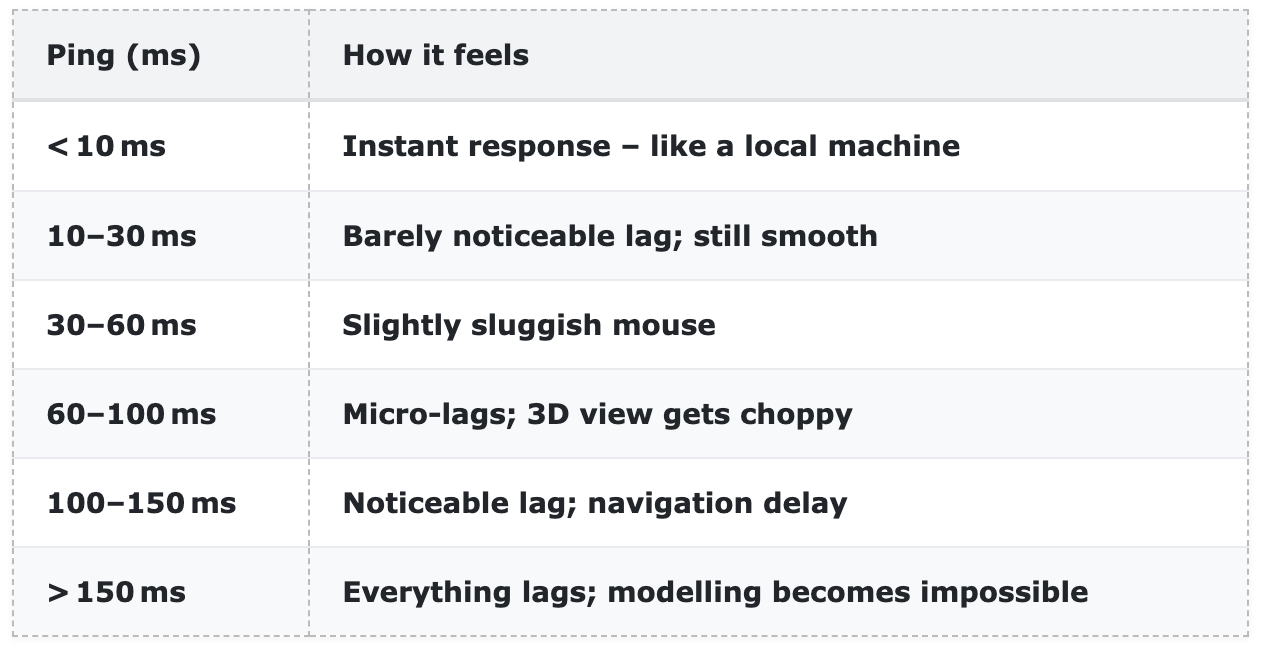

Ping (ms)	How it feels
< 10 ms	Instant response – like a local machine
10–30 ms	Barely noticeable lag; still smooth
30–60 ms	Slightly sluggish mouse
60–100 ms	Micro‑lags; 3D view gets choppy
100–150 ms	Noticeable lag; navigation delay
> 150 ms	Everything lags; modelling becomes impossible

As you can see, even on a mid‑range mobile connection, working over RDP is perfectly comfortable. We’re not playing shooters here – micro‑lags aren’t critical, and in Revit they feel much softer.

Conclusion

Ideal for heavy models, complex coordination, and collaborative work. The key requirement is a stable connection.

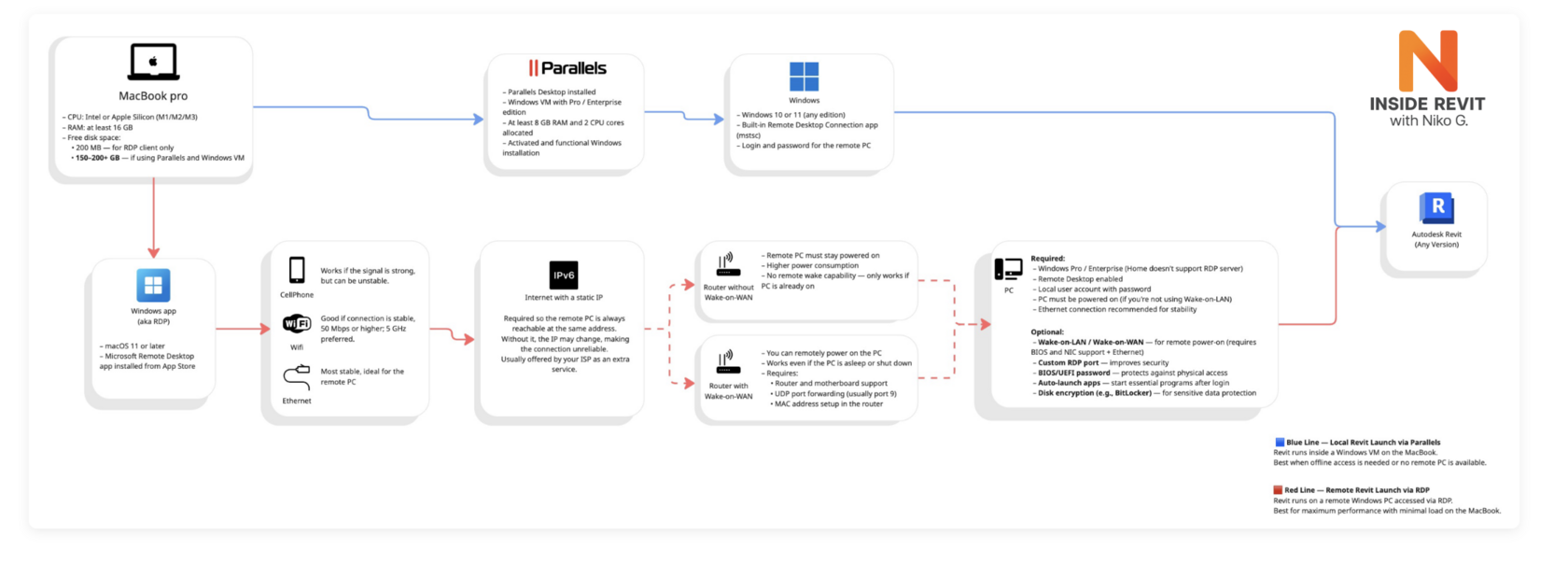

3. Hybrid approach: maximum flexibility

I use both scenarios – Parallels on the road, RDP in the office, or whenever Wi‑Fi is solid. One Mac becomes a universal tool, serving as both a mobile workstation and a client for a beefy PC.

Examples of use:

• Business trips, site visits, or client meetings – I fire up Parallels

• Large projects, coordination, day‑to‑day work – I connect via RDP

This hybrid lets you enjoy the strengths of both approaches while minimizing their drawbacks.

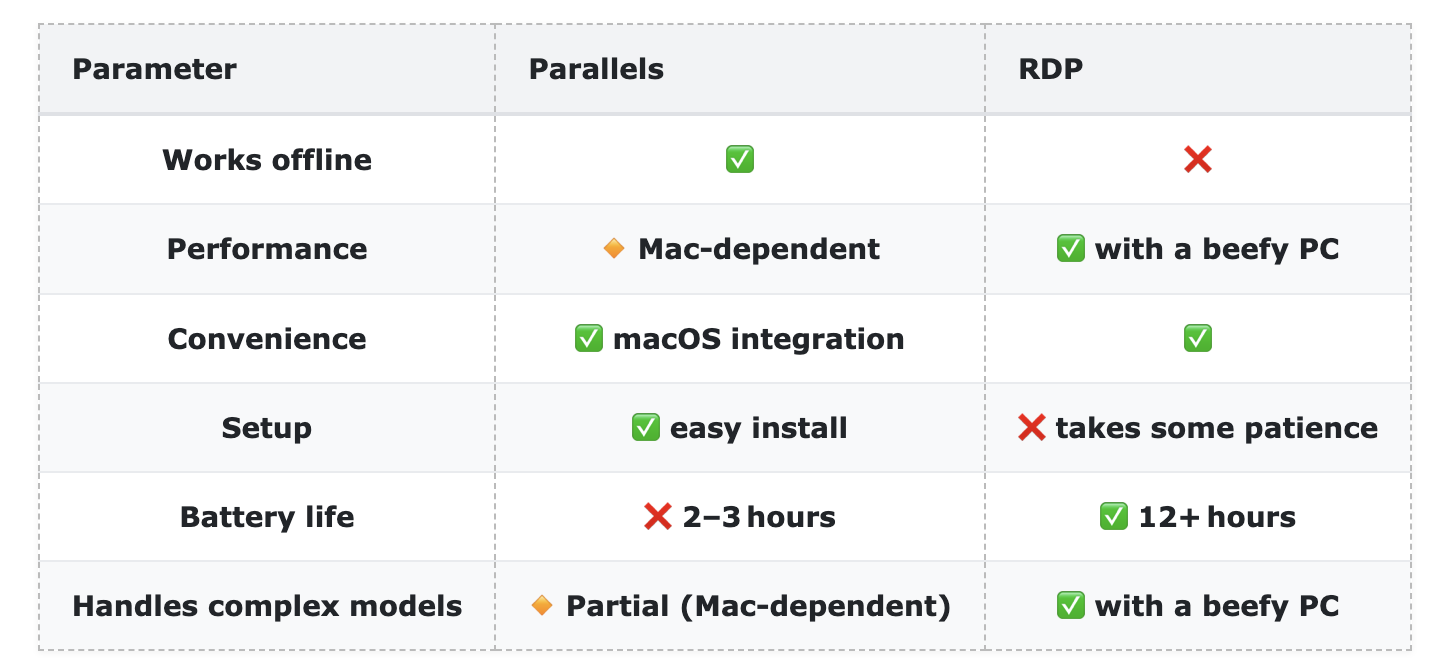

Comparison: Parallels vs. RDP

Final takeaway

Postscript

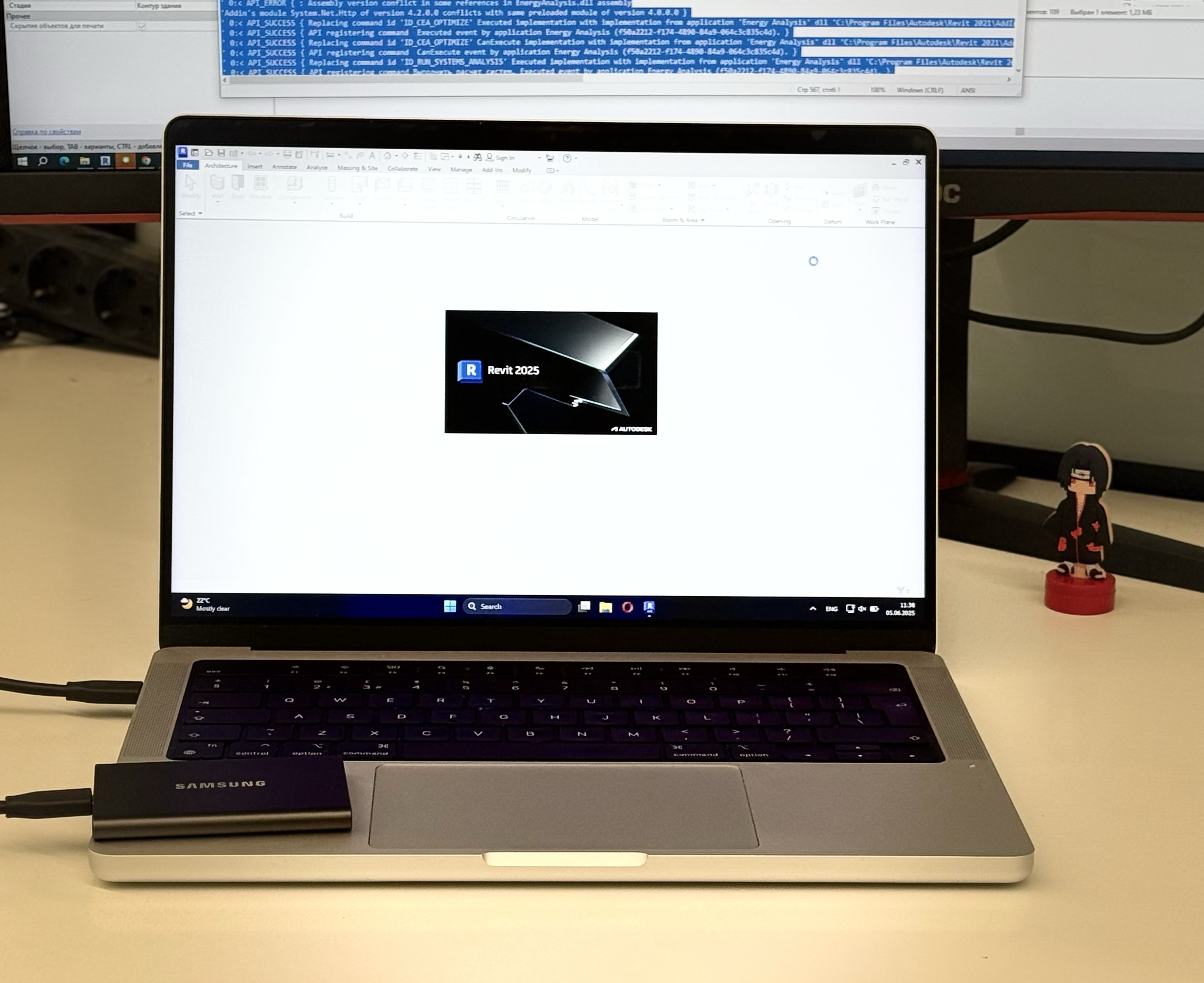

If you looked closely at the screenshots, you probably noticed I’m running everything off an external Samsung T7 SSD.
My 14″ MacBook Pro only has 512 GB, and at first I thought that’d be enough. I was so wrong — and that false economy bit me fast.

Luckily, the fix was simple: I moved all of Parallels and my work files onto the external SSD. Now everything runs straight from there.
It’s the size of a credit card, about three cards thick. Doesn’t take up space, doesn’t make noise, and doesn’t heat up.

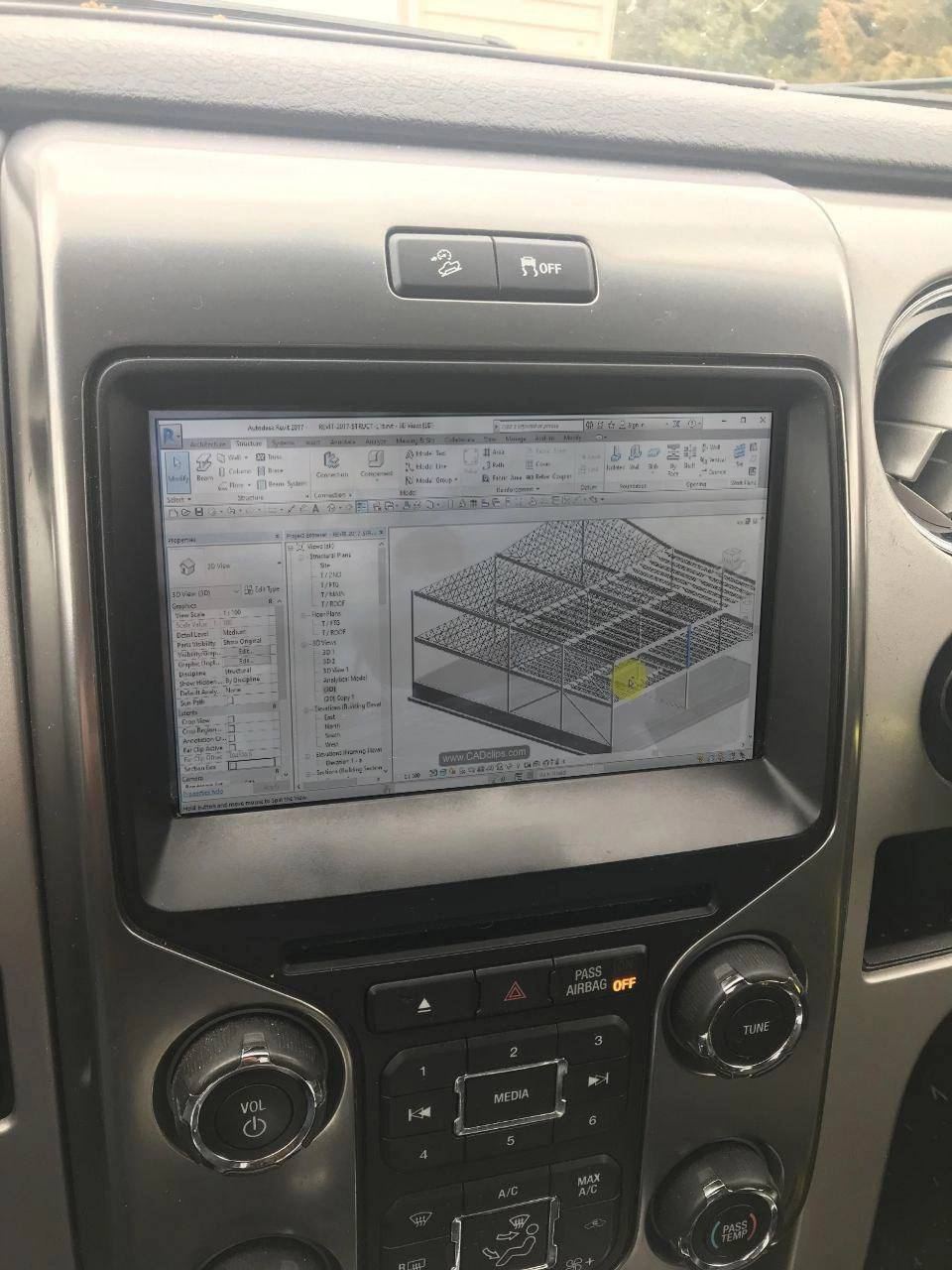

P.S. Honestly — if you want to, you can get Revit running even in a car. Just takes a bit of curiosity.

Just to clarify — the photo was a joke, but yeah, if you wanted to, you could set up RDP on a car’s onboard computer too.

Final thoughts

This was my personal experience. I’ve tested all the practical setups, and with this post, I wanted to put the question to rest: Can you work comfortably in Revit on a Mac?

The answer is yes — as long as you understand what you need.

It’s not about “expensive vs. cheap.”
It’s about the specific tasks you need to get done.

Choose solutions, not hardware.
And your setup will fit — even in a world as seemingly incompatible as macOS + Revit.
